Shank Types / Fixtures

STANDARD Shanks / Fixtures

	Style no.	Application	Weight - Carat	Quality - AA, A, B, E

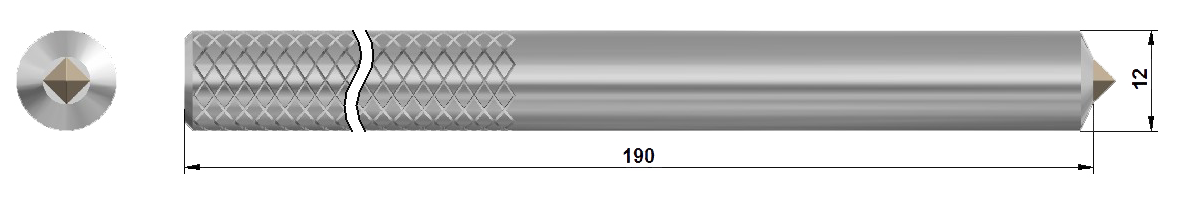

	PS1	Hand-type Dresser	0.25, 0.35, 0.50, 0.75, 1.00, 1.25, 1.50, 2.00	A, B, E

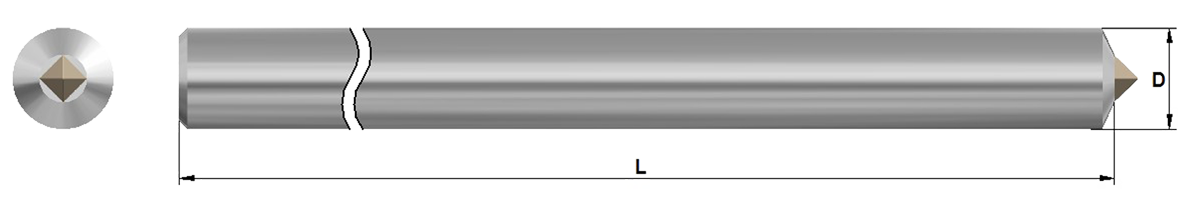

	PS2	Straight shank (various dimensions)	0.25, 0.35, 0.50, 0.75, 1.00, 1.25, 1.50, 2.00	AA, A, B, E

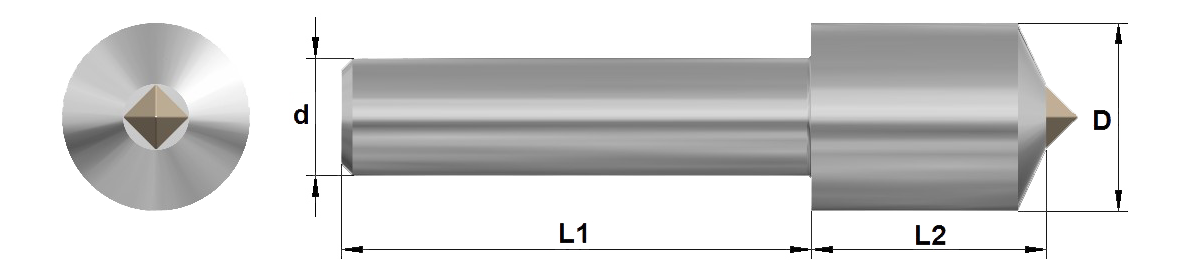

	PS3	Straight shank with head	0.25, 0.35, 0.50, 0.75, 1.00, 1.25, 1.50, 2.00, 2.50, 3.00	AA, A, B
	PS5	Morse taper 1	0.25, 0.35, 0.50, 0.75, 1.00, 1.25	AA, A, B
	PS5/H	Morse taper 1 with head	0.25, 0.35, 0.50, 0.75, 1.00, 1.25, 1.50, 2.00, 2.50, 3.00	AA, A, B
	PS6	Morse taper 0 (M4 thread optional)	0.25, 0.35, 0.50, 0.75	AA, A, B
	PS6/H	Morse taper 0 with head	0.25, 0.35, 0.50, 0.75, 1.00, 1.25	AA, A, B

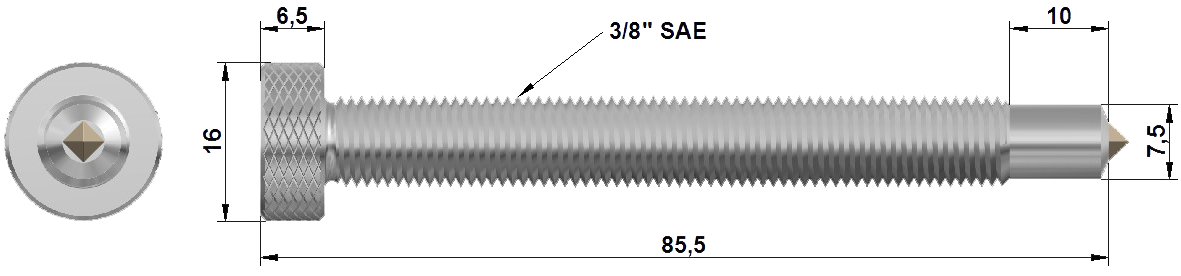

	PS8 3/8" SAE thread	Sioux Valve refacer	0.25, 0.35, 0.50	AA, A, B

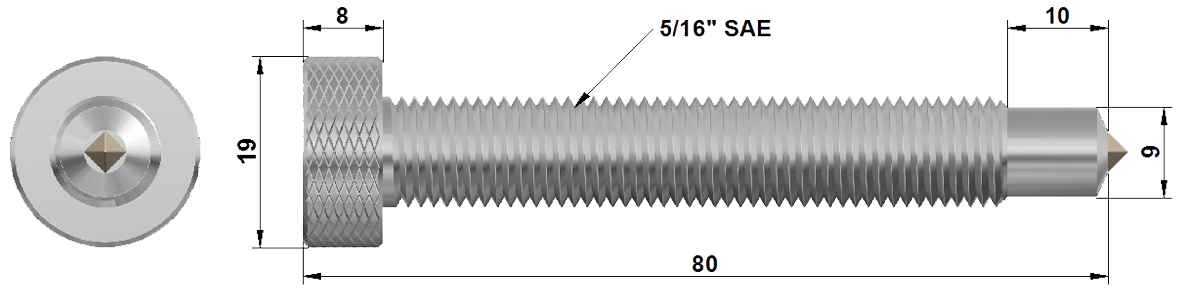

	PS8 5/16" SAE thread	Kwik-way Valve refacer	0.25, 0.35, 0.50	AA, A, B

Please specify shank details as well as size and quality of diamond.

SPECIAL Shanks / Fixtures

Type	Description		Type	Description

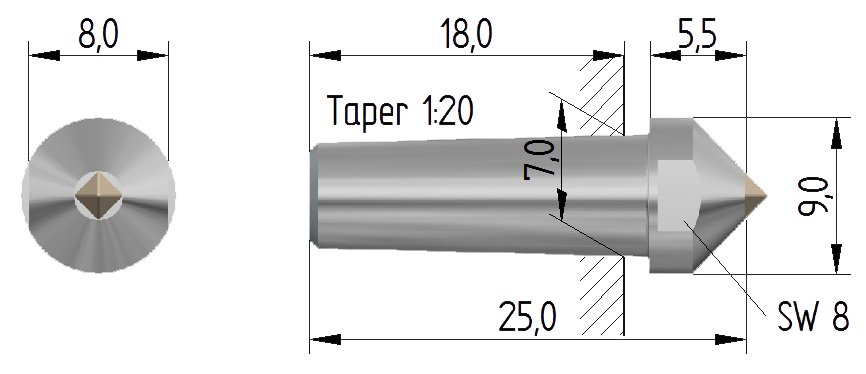

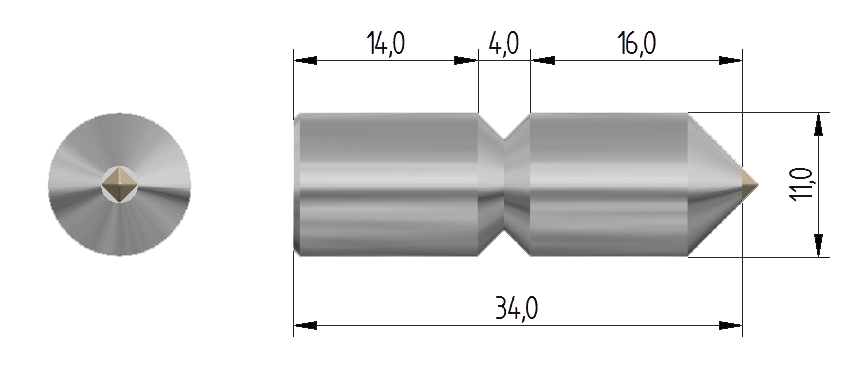

	Jung 1751 Taper 1:20			Landis type a

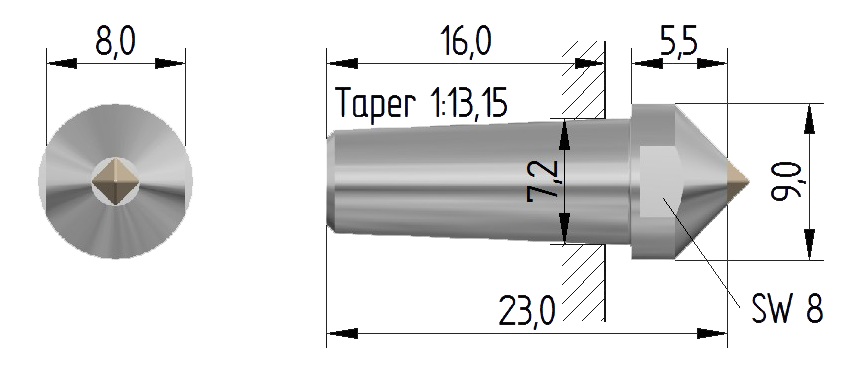

	Jung 1751 Taper 1:13,15			Landis type b d= 6,0 ; 6,5 ; 8,0

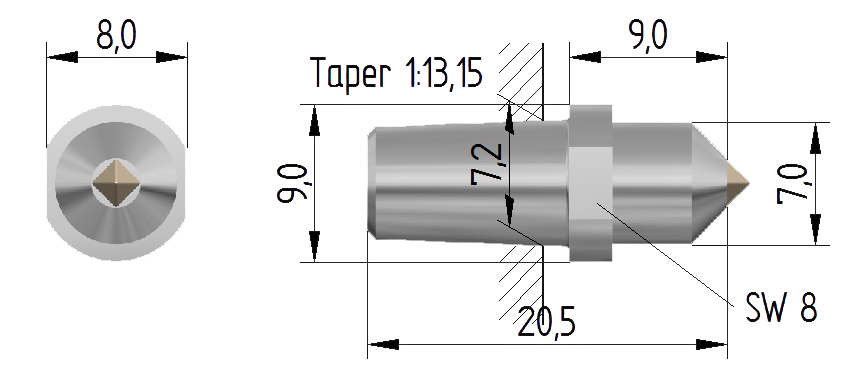

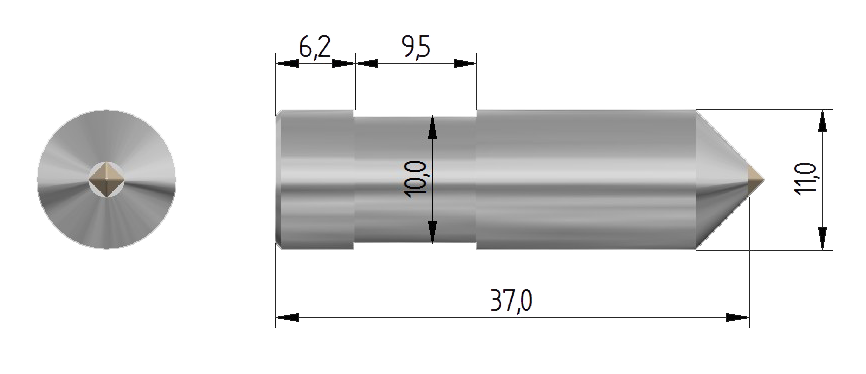

	Jung C8 Taper 1:13,15			Lidkoping

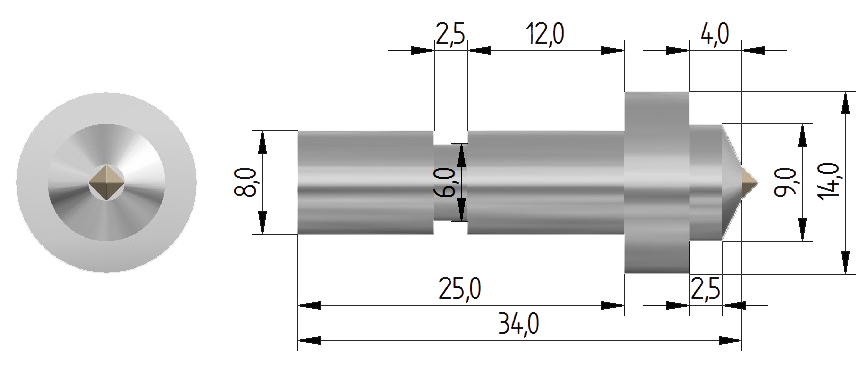

	Jung FA 42-12 Taper 1:10			Nomoko
	Jung NT 65 Taper 1:13,15			Niles type a
	Kolb KZ 1 & 2 Taper 1:50			Niles type b

For OTHER shank types, please specify shank details as well as size and quality of diamond.
